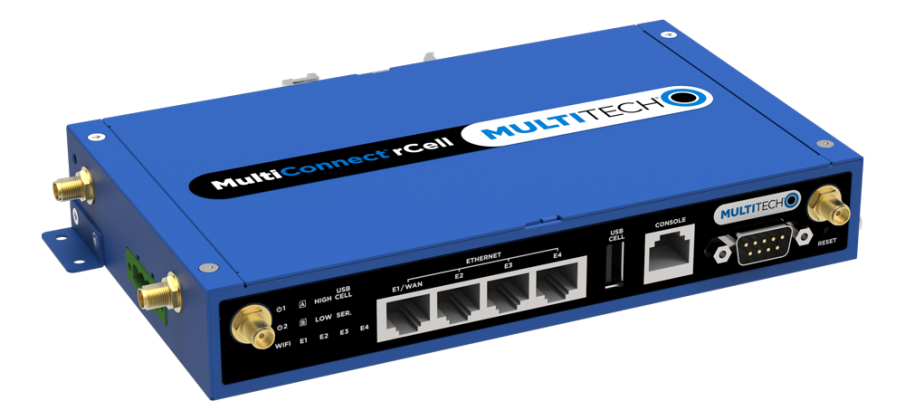

MultiConnect® rCell 500 Series LTE Cellular Router (EU/UK)

Extend your networks reach into your remote sites, connect payment and inventory management systems, monitor equipment performance and provide always on failover connectivity through your choice of broadband wireless networks.

Ready for deployment in Europe, the MultiConnect® rCell 500 Series is an easy to configure LTE broadband wireless and Ethernet router. The configurable serial port on the MultiConnect rCell 500 Series controls IT assets and communicates with industrial appliances.

MultiConnect® rCell 500 Series

MTR5-LEU2 - LTE Cellular Router

LTE Cat 4 Cellular Routers for Hazardous Locations (EU/UK)

Weight 1.32 lbs
Dimensions 7.36 × 4.33 × 1.22 in
Product Family

MTR5 Series


Europe, United Kingdom

Enclosure & Environments

DIN Rail Mount, Indoor


CE Mark (EU), Network – GCF certified module (Europe and United Kingdom carriers), Regulatory Compliance – R&TTE, Safety – IEC60950-1, UKCA (UK)


4G Antenna – 2dBi detachable antennas (Qty 2), 4G Antenna – Female SMA, Power -DECA™ MC101-50004 terminal block, 12-48VDC Dual Redundant Power Input, RJ45, 10/100 (3 LAN/1 WAN or 4 LAN) Auto MDI/MDIX, Second Serial Port – RJ12, supports DCE RS-232, Serial Port – DE9, supports RS-232/RS-485, SIM SIM/USIM, 2 Sockets for failover, USB Cellular Modem Support, 5V/1000mA, Wi-Fi 5dBi detachable antennas (Qty 2), Wi-Fi Reverse polarity Female SMA

Model # MTR5-LEU2-B04.R1-EU-GB Categories , , Tags , ,


  • 4 Ethernet 10/100 LAN/WAN ports and Wi-Fi® (802.11 b/g/n)
  • Dual SIM/USIM cards
  • Dual power supply input, 12-48 VDC
  • Automatic WAN failover and failback

Key Benefits

  • Cloud-based device management platform for over-the-air network diagnostics and configuration
  • Industrial standard interfaces
  • Quick setup and easy deployment
  • Industrial DIN rail mounting

DeviceHQ takes remote device management and maintenance to a new level, by providing an application marketplace, allowing users to browse applications or build their own then easily deploy them to and customize them for remote devices from anywhere.
