Conduit AP MTCAP2 Hardware Guide

Conduit AP MTCAP2 Hardware Guide

This document applies to all models and regions on the device overview page. Go to https://multitech.com/all-products/cellular/cellular-gateways/conduit-ap/#models.

Document Part Number: S000836 Rev. 1.0

Download PDF

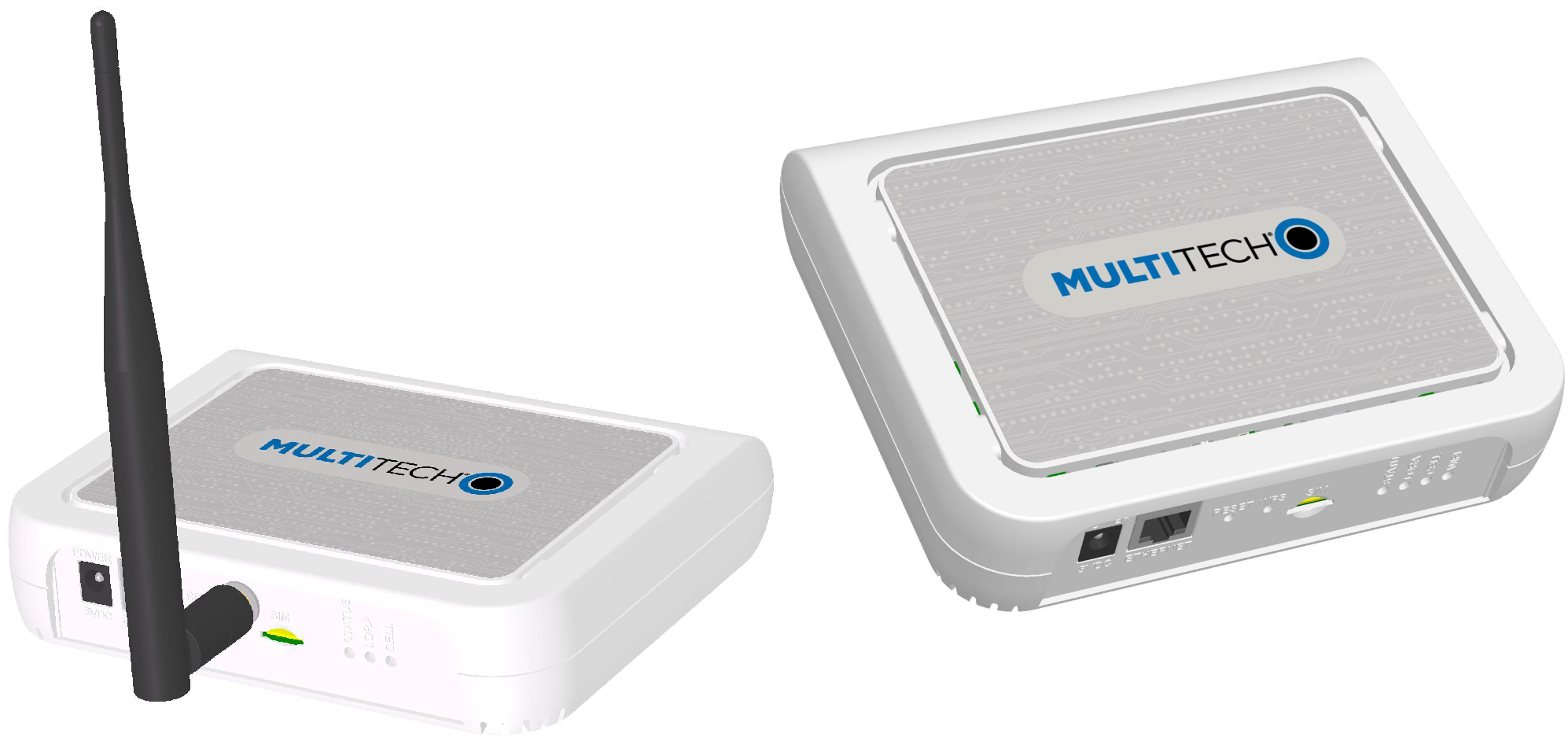

About the Conduit® AP 200

Conduit AP (MTCAP2) securely connects thousands of LoRaWAN® wireless IoT sensors to the cloud using the LoRaWAN® protocol. The Conduit AP Access Point packet forwarding gateway offers Ethernet and Cellular Wide Area Networks seamless connectivity options to connect to Cloud based applications in centrally located data centers.

Package Contents

Your device ships with the following:

1 – Conduit AP Access Point 200 Series

1 – Mounting bracket

1 – RJ45 Ethernet cable

1 – LoRa antenna (based on model)

1 – Quick Start

Important: You will also need either a 5-Volt, 2.5 Amp power supply, or a PoE injector.

MTCAP2 Ordering Options

Required Tools

The following tools are only required if mounting the device:

  • Four #6 (3.5mm) screws with anchors (not provided)
  • Screwdriver
  • Drill

Safety Instructions

Operation Safety

CAUTION:
Read all instructions and safety information before installing or using this device.

ATTENTION: Lisez toutes les instructions et consignes de sécurité avant d'installer ou d'utiliser cet appareil.

  • Follow all local laws, regulations, and rules for operating a wireless device.
  • Use the device security features to block unauthorized use and theft.
  • Unless otherwise noted, antennas are not approved for outdoor use. Do not extend any antenna outside of any building, dwelling, or campus.
  • Do not attempt to disassemble the device. There are no user-serviceable parts inside.
  • Do not misuse the device. Follow instructions on proper operation and only use as intended. Misuse could make the device inoperable, damage the device or other equipment, or harm users.
  • Do not apply excessive pressure or place unnecessary weight on the device. This could result in damage to the device or harm to users.
  • Do not use this device in explosive or hazardous environments unless the model is specifically approved for such use. The device may cause sparks. Sparks in explosive areas could cause an explosion or fire that may result in property damage, severe injury, or death.
  • Do not expose the device to any extreme environment where the temperature or humidity is high. Such exposure could result in damage to the device or cause a fire. See the device specifications for recommended operating temperature and humidity.
  • Do not expose the device to water, rain, or other liquids. It is not waterproof. Exposure to liquids could result in damage to the device.
  • Using accessories, such as antennas, that MultiTech has not authorized or that are not compliant with the device accessory specifications may invalidate the warranty.

If the device is not working properly, contact MultiTech technical support.

PoE Safety

Warnings and Cautions

Warning and Caution symbols mean potential danger. You are in a situation that could cause bodily injury. Before working on any equipment, be aware of hazards in the installation area and be knowledgeable about electrical circuitry. Be familiar with standard practices for preventing accidents.

Les symboles d'avertissement et de mise en garde indiquent un danger potentiel. Vous vous trouvez dans une situation qui peut entraîner des blessures corporelles. Avant de travailler sur un équipement, vous devez être conscient des dangers potentiels dans la zone d'installation et connaitre les circuits électriques. Familiarisez-vous avec les pratiques normalisées de prévention des accidents.

WARNING: Only trained and qualified personnel should install, replace, or service this equipment. Installation must comply with local and national electrical codes.

  • Disconnect PoE power (Ethernet PoE port) before servicing the device.
  • Do not work on the system or connect or disconnect cables during periods of lightning activity.
  • This device is not designed or approved to be used in any Hazardous Locations. Do not install or operate device if area is known to be an explosive environment.
AVERTISSEMENTS: Seul un personnel formé et qualifié doit installer, remplacer ou entretenir cet équipement. L'installation doit être conforme aux codes électriques locaux et nationaux.
  • Déconnectez l'alimentation PoE (port Ethernet PoE) avant de procéder à l'entretien cet appareil.
  • Ne travaillez pas sur le système et ne branchez ni débranchez les câbles pendant les périodes d'activité de la foudre.
  • Cet appareil n'est ni conçu ni approuvé pour être utilisé dans des endroits dangereux. N'installez pas et ne faites pas fonctionner l'appareil si la zone est connue pour être un environnement où il y a des risques d'explosion.

CAUTION: Power over Ethernet (PoE) Certification does not apply or extend to voltages outside of standard PoE range. PoE voltage is 38 Vdc to 57 VDC. Any PoE voltages outside this range have not been evaluated by UL or MULTITECH. The end user supplies the PoE cable.

  • Recommended PoE: 802.3at-compliant Type 2 Class 4 Power-over-Ethernet (PoE) Powered Devices (PDs) and require PoE Power Supply Equipment (PSE) that is 802.3at-compliant with minimum 25.5W output power capability.
  • This is an 802.3at Type 2 device. For more information, refer to the Conduit PoE Application Note (S000678).
  • Ethernet port is not designed to be connected to a public Telecommunication (PSTN) or any other connection other than IEEE 802.3-2012 power over Ethernet devices.
  • Do not remove product labels.

MISES EN GARDE: La certification PoE (Power over Ethernet) ne s'applique pas et ne s'étend pas aux tensions situées en dehors de la plage PoE standard. La plage PoE pour le MTCDTIP2 se situe entre 38 et 57 VDC. Toute tension PoE en dehors de la plage indiquée n'a pas été évaluée par UL ou MULTITECH. L'utilisateur final fournit le câble PoE.

  • Il s'agit d'un appareil 802.3at de type 2. Pour de plus amples renseignements, reportez-vous à la note d'application PoE de Conduit (S000678).
  • Le port Ethernet n'est pas conçu pour être connecté à un réseau de télécommunication public (PSTN) ou à toute autre connexion autre que les dispositifs Power over Ethernet IEEE 802.3-2012.
  • Ne retirez pas les étiquettes du produit.

Ethernet Ports

CAUTION:
Ethernet ports and command ports are not designed to be connected to a public telecommunication network or used outside the building.

ATTENTION: Les ports Ethernet et de commande ne sont pas conçus pour être raccordés à un réseau de télécommunications public ou utilisé à l'extérieur du bâtiment.

Power Supply Caution

CAUTION:
Do not replace the power supply with one designed for another product; doing so can damage the modem and void your warranty. Adapter shall be installed near the equipment and shall be easily accessible.

ATTENTION: Pour garantir une protection continue contre les risques d'incendie, remplacez les fusibles uniquement par des fusibles du même type et du même calibre. L'adaptateur doit être installé à proximité de l'appareil et doit être facilement accessible.

VORSICHT: Ersetzen Sie das Netzteil nicht durch ein Netzteil, das für ein anderes Produkt vorgesehen ist. Andernfalls kann das Modem beschädigt werden und Ihre Garantie erlischt. Der Adapter muss in der Nähe des Geräts installiert und leicht zugänglich sein.

UL Notice

UL Listed at 40° C, limited by power supply. UL Certification does not apply or extend to an ambient above 40° C and has not been evaluated by UL for ambient greater than 40° C. “UL has evaluated this device for use in ordinary locations only. Installation in a vehicle or other outdoor locations has not been evaluated by UL. UL Certification does not apply or extend to use in vehicles or outdoor applications or in ambient above 40° C.”

Spécifications UL

Listé UL à 40° C, limité par l'alimentation. La certification UL ne s'applique pas ou ne s'étend pas à des températures dépassant 40° C, et le produit n'a pas été évalué par UL pour une température ambiante dépassant 40° C. « UL a évalué cet appareil pour une utilisation en zone ordinaire uniquement. Le produit n'a pas été évalué par UL pour une installation dans un véhicule ou en extérieur. La certification UL ne s'applique pas ou ne s'étend pas aux applications dans un véhicule, en extérieur ou en présence d'une température ambiante supérieure à 40° C ».

General Safety

The device is designed for and intended to be used in fixed and mobile applications. Fixed means the device is physically secured at one location and cannot be easily moved to another location. Mobile means the device is used in other than fixed locations.

CAUTION:
Maintain a separation distance of at least 23 cm (9 inches) between the transmitter’s antenna and the body of the user or nearby persons. The device is not designed for or intended to be used in portable applications within 23 cm (9 inches) of the user’s body.

ATTENTION: Maintenir une distance d'au moins 23 cm (9 po) entre l'antenne du récepteur et le corps de l'utilisateur ou à proximité de personnes. Le modem n'est pas conçu pour, ou destinés à être utilisés dans les applications portables, moins de 23 cm (9 po) du corps de l'utilisateur.

Radio Frequency (RF) Safety

Due to the possibility of radio frequency (RF) interference, it is important that you follow any special regulations regarding the use of radio equipment. Follow the safety advice given below.

  • Operating your device close to other electronic equipment may cause interference if the equipment is inadequately protected. Observe any warning signs and manufacturers’ recommendations.
  • Different industries and businesses restrict the use of cellular devices. Respect restrictions on the use of radio equipment in fuel depots, chemical plants, or where blasting operations are in process. Follow restrictions for any environment where you operate the device.
  • Do not place the antenna outdoors.
  • Turn off your wireless device when in an aircraft. Using portable electronic devices in an aircraft may endanger aircraft operation, disrupt the cellular network, and may be illegal. Failing to observe this restriction may lead to suspension or denial of cellular services to the offender, legal action, or both.
  • Turn off your wireless device when around gasoline or diesel‑fuel pumps and before filling your vehicle with fuel.
  • Turn off your wireless device in hospitals and any other place where medical equipment may be in use.

Sécurité relative aux appareils à radiofréquence (RF)

À cause du risque d'interférences de radiofréquence (RF), il est important de respecter toutes les réglementations spéciales relatives aux équipements radio. Suivez les conseils de sécurité ci-dessous.

  • Utiliser l'appareil à proximité d'autres équipements électroniques peut causer des interférences si les équipements ne sont pas bien protégés. Respectez tous les panneaux d'avertissement et les recommandations du fabricant.
  • Certains secteurs industriels et certaines entreprises limitent l'utilisation des appareils cellulaires. Respectez ces restrictions relatives aux équipements radio dans les dépôts de carburant, dans les usines de produits chimiques, ou dans les zones où des dynamitages sont en cours. Suivez les restrictions relatives à chaque type d'environnement où vous utiliserez l'appareil.
  • Ne placez pas l'antenne en extérieur.
  • Éteignez votre appareil sans fil dans les avions. L'utilisation d'appareils électroniques portables en avion est illégale: elle peut fortement perturber le fonctionnement de l'appareil et désactiver le réseau cellulaires. S'il ne respecte pas cette consigne, le responsable peut voir son accès aux services cellulaires suspendu ou interdit, peut être poursuivi en justice, ou les deux.
  • Éteignez votre appareil sans fil à proximité des pompes à essence ou de diesel avant de remplir le réservoir de votre véhicule de carburant.
  • Éteignez votre appareil sans fil dans les hôpitaux ou dans toutes les zones où des appareils médicaux sont susceptibles d'être utilisés.

Interference with Pacemakers and Other Medical Devices

Radio frequency energy (RF) from cellular devices can interact with some electronic devices. This is electromagnetic interference (EMI). The FDA helped develop a detailed test method to measure EMI of implanted cardiac pacemakers and defibrillators from cellular devices. This test method is part of the Association for the Advancement of Medical Instrumentation (AAMI) standard. This standard allows manufacturers to ensure that cardiac pacemakers and defibrillators are safe from cellular device EMI.

The FDA continues to monitor cellular devices for interactions with other medical devices. If harmful interference occurs, the FDA will assess the interference and work to resolve the problem.

Precautions for Pacemaker Wearers

If EMI occurs, it could affect a pacemaker in one of three ways:

  • Stop the pacemaker from delivering the stimulating pulses that regulate the heart's rhythm.
  • Cause the pacemaker to deliver pulses irregularly.
  • Cause the pacemaker to ignore the heart’s own rhythm and deliver pulses at a fixed rate.

Based on current research, cellular devices do not pose a significant health problem for most pacemaker wearers. However, people with pacemakers may want to take simple precautions to be sure that their device doesn't cause a problem.

  • Keep the device on the opposite side of the body from the pacemaker to add extra distance between the pacemaker and the device.
  • Avoid placing a turned-on device next to the pacemaker (for example, don’t carry the device in a shirt or jacket pocket directly over the pacemaker).

Specifications

LNA3 Specifications

Category Description
General
Standards LoRaWAN 1.0.2 specifications
LTE 3GPP Release 9
HSPA+
RAM 256MB
Flash 256MB
Radio Frequency
ISM Band 915 MHz ISM band for US and Canada
4G/LTE 1900 (B2) / AWS 1700 (B4) / 850 (B5) / 700 (B12/13)
3G 1900 (B2) / 850 (B5)
Physical Description
Weight 0.4 kg
Dimensions Refer to Mechanical Drawings for Dimensions.
Chassis Type PC-ABS
Environment
Operating Temperature1 -0° C to +70° C
Storage Temperature -40° C to +85° C
Humidity 20%-90% RH, non-condensing
Power Requirements
Operating Voltage 5Vdc, 1.4A
PoE Standard IEEE 802.3at
PoE Input Power 38-57 Vdc
LoRa EIRP Maximum 27dbm conducted and 30db EIRP when using external 3db gain antenna
Certifications and Compliance
EMC and Radio Compliance FCC Part 15 Class B2
FCC Part 15.247 (LoRa)
FCC 22H, 24E, 27
Safety Compliance UL 62368-1 2nd Ed
UL / IEC 62368-1

1 UL listed at 40° C, limited by AC power supply. Product has been tested to +70° C excluding power supply.

2 To maintain Part 15 Class B classification, use a Class B PoE injector. Using a Class A PoE injector changes the classification for the system to Class A.

L4E1 Specifications

Category Description
General
Standards LoRaWAN 1.0.2 specifications
LTE FDD Cat 4, 3GPP release compliant (-L4E1 models only)
HSPA+ with GPRS fallback (-L4E1 models only)
RAM 256MB
Flash 256MB
Radio Frequency
ISM Band 868 MHz ISM band for Europe
4G/LTE 4G: B1, B3, B7, B8, B20, B28A (-L4E1 models only)
3G 3G: B1, B3, B8 (-L4E1 models only)
2G 2G: B3, B8 (-L4E1 models only)
Physical Description
Weight 0.41 kg
Dimensions Refer to Mechanical Drawings for Dimensions.
Chassis Type PC-ABS
Environment
Operating Temperature1 -0° C to +70° C
Storage Temperature -40° C to +85° C
Humidity 20%-90% RH, non-condensing
Power Requirements
Operating Voltage 5Vdc, 1.4A
PoE Standard IEEE 802.3at
PoE Input Power 38-57 Vdc
LoRa ERP2 13.3 dBm ERP for low power channels, maximum 14 dB.
25.8 dB for high power channels, maximum 27 dB.
Certifications and Compliance
EMC and Radio Compliance CE Mark, RED (EU)
Safety Compliance UL/IEC 62368-1

1 UL listed at 40° C, limited by AC power supply. Product has been tested to +70° C excluding power supply.

2Determined using the internal LoRa antenna of 0.85 dB gain. If using an external LoRa antenna, adjust levels to ensure maximum values are not exceeded.

Important: 2G fallback can cause issues when operating on battery power. If you have a SIM that supports 2G fallback, consult your carrier for options.

Device Dimensions

Models with External Antenna



LoRa Models

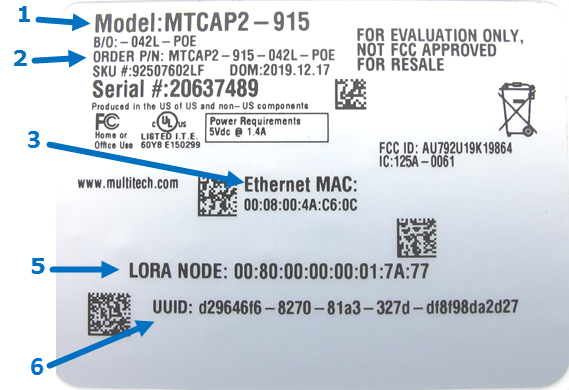

MTCAP2 Labels

These are example labels. Actual labels vary depending on the regulatory approval markings and device model.

Note: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.


  1. MultiTech model identification
  2. MultiTech ordering part number
  3. IMEI (international mobile equipment identity) (cellular models only)
  4. Device node number
  5. UUID (universally unique identifier)

Connectors and LEDs

LoRa only models

LoRa and cellular radio models

Note: Some features are available only on select models. The above image shows the model with all features. For models that don't have a cellular radio, the chassis will not have a SIM slot.
Item Description
Connectors
Power 5 Volt power jack.
Ethernet RJ45 Ethernet jack.
Reset Reset button. Reboots device or restores factory defaults. Refer to Resetting the Device for details.
WPS Reserved for future use.
(No label) Connector for external LoRa antenna.
SIM Cellular models only. Micro (3FF) SIM slot. Refer to Installing SIM Card for details.
LEDs
STATUS Blinks when operating system is fully loaded.
LORA Lights when LoRa software is active.
CELL Cellular models only. Lights when there is power to the radio. Blinks when the SIM is registered with the carrier.
Ethernet Link Left LED on the Ethernet connector. Blinks when data is sent or received on the Ethernet link. Steady light when there is a valid Ethernet connection.
Ethernet Speed Right LED on the Ethernet connector. Lit when the Ethernet is linked at 100 Mbps. If not lit, the Ethernet is linked at 10 Mbps.

Antenna

Your device ships with the following antenna. Contact MultiTech if you need a replacement antenna.

Antenna Compliance

This radio transmitter [IC: 125A-0063] has been approved by Innovation, Science and Economic Development Canada to operate with the antenna types listed below, with the maximum permissible gain indicated. Antenna types not included in this list that have a gain greater than the maximum gain indicated for any type listed are strictly prohibited for use with this device.

Le présent émetteur radio [IC: 125A-0063] a été approuvé par Innovation, Sciences et Développement économique Canada pour fonctionner avec les types d'antenne énumérés ci‑dessous et ayant un gain admissible maximal. Les types d'antenne non inclus dans cette liste, et dont le gain est supérieur au gain maximal indiqué pour tout type figurant sur la liste, sont strictement interdits pour l'exploitation de l'émetteur.

LoRa Antenna

Manufacturer: PulseLarsen Antenna
Description: 868-928 MHz RP-SMA Antenna, 8"
Model Number: W1063

MultiTech Ordering Part Numbers

Ordering Part Number Quantity
AN868-915A-1HRA 1
AN868-915A-10HRA 10
AN868-915A-50HRA 50

Specifications

Category Description
Frequency Range 868-928 MHz
Impedance 50 Ohms
VSWR < 2.0
Gain 1.0 dBi
Radiation Omni
Polarization Vertical

Power Measurements

MTCAP-L4E1-868-042L

Note:
  • Multi-Tech Systems, Inc. recommends that you incorporate a 10% buffer into the power source when determining product load.
  • Maximum Power: The continuous current during maximum data rate with the radio transmitter at maximum power.
  • Tx Pulse: The average peak current during a GSM850 transmission burst period or HSDPA/LTE connection. The transmission burst duration for GSM850 can vary, depending on what transmission scheme is being deployed (GPRS Class 8, Class 10, GSM, etc.).
  • Inrush Charge: The total inrush charge at power on.
Voltage Sleep Mode Current Cellular Call Box Connection No Data, OR IDLE Measure, with no Radio Average Measured Current at Maximum Power TX Pulse Peak Current for no radio model Total Inrush Charge Total Inrush Charge Duration
5 VDC N/A 137 mA 452 mA 584 mA 0.962 mC 1.69 mS
38 VDC POE N/A 61 mA 126 mA 272 mA 0.127 mC 10.6 mS
56 VDC N/A 40 mA 106 mA 224 mA 0.130 mC 10.3 mS

MTCAP-868-042L

Note:
  • Multi-Tech Systems, Inc. recommends that you incorporate a 10% buffer into the power source when determining product load.
  • Maximum Power: MTCAP LoRa connection to MTXDOT running TXP =20 and at+txdr=2. The MTXDOT was initialized to send packets by joining MTCAP and rapidly sending packet to the MTCAP.
  • Tx Pulse: The average peak current.
  • Inrush Charge: The total inrush charge at power on.
Average Measured Current at Maximum Power TX Pulse Peak Current for no radio model Total Inrush Charge Measured in Millicoulomb
5.0 Volts
mA mA mC

MTCAP2-915-042

Note:
  • Multi-Tech Systems, Inc. recommends that you incorporate a 10% buffer into the power source when determining product load.
  • Maximum Power: The continuous current during maximum data rate and at LoRa Max power setting
  • Tx Pulse: The average peak current during LoRa transmission.
  • Inrush Charge: The total inrush charge at power on.
Voltage Sleep Mode Current Cellular Call Box Connection No Data, OR IDLE Measure, with no Radio Average Measured Current at Maximum Power TX Pulse Peak Current for no radio model Total Inrush Charge Total Inrush Charge Duration
5 VDC N/A 137 mA 452 mA 584 mA 0.962 mC 1.69 mS
38 VDC POE N/A 61 mA 126 mA 272 mA 0.127 mC 10.6 mS
56 VDC N/A 40 mA 106 mA 224 mA 0.130 mC 10.3 mS

MTCAP2-LNA3-915

Note:
  • Multi-Tech Systems, Inc. recommends that you incorporate a 10% buffer into the power source when determining product load.
  • Maximum Power: The continuous current during maximum data rate with the radio transmitter at maximum power.
  • Tx Pulse: The average peak current during an LTE connection.
  • Inrush Charge: The total inrush charge at power on.
Voltage Cellular Call Box Connection, No Data Average Measured Current at Maximum Power TX Pulse (AVG) Amplitude Current for GSM850 or Peak Current for LTE Total Inrush Charge Measured in Millicoulomb Total Inrush Duration
LTE Band 5
5 VDC only 175 mA 951 mA 1.06 A 1.65 mC 1.63 mS
38 VDC POE 68 mA 280 mA 368 mA 1.04 mC 8.57 mS
56 VDC POE 51 mA 191 mA 276 mA 0.968 mC 7.82 mS
WCDMA Band 5 1854 MHz
5 VDC only 171 mA 1.05 A 1.26 A 1.65 mC 1.63 mS
38 VDC POE 73 mA 298 mA 388 mA 1.04 mC 8.57 mS
56 VDC POE 52 mA 205 mA 300 mA 0.968 mC 7.82 mS

Before Installation

Installing a SIM Card

Models with cellular capability have a micro SIM slot, you'll need a micro (3FF) SIM card from your network provider.

To install the SIM card:

  • With the contact side facing down, align the notched edge as shown and slide the SIM card completely into the SIM holder.

Removing a SIM Card

To remove the SIM card, push the SIM card in. The device ejects the SIM card.

Attaching the Antenna

(Models with external antenna only)

To connect the antenna:

  • Finger-tighten the antenna to the antenna connector on your device.

Cabling the Device

To cable the device:

Note: If using PoE to power your device, refer to Power over Ethernet (PoE) for additional information and skip Step 2.
  1. Connect the Ethernet cable to the Ethernet port on the device.
  2. Connect the power supply to the MTCAP's power jack and plug it into an electrical outlet.

When the operating system is fully loaded, the STATUS LED blinks.

Mounting the Device

The device ships with a mounting bracket.

You will need

  • Device
  • Mounting bracket
  • Four #6 (3.5mm) screws with anchors (not provided)
  • Screwdriver
  • Drill

Mounting Bracket

Determining Location

Follow these guidelines for best performance:

  • The LoRa antenna is omnidirectional, but for best results, mount the device so the LoRa antenna is in a vertical position as shown in this section.
  • For models with only internal LoRa antennas, place the device as high as possible, such as near the top of a wall.
  • For models with external LoRa antennas, place the device at a level higher than the end devices.
  • Select a location central to all devices to be connected to this device.
  • Avoid obstructions.
    Important: Thick walls and reflective surfaces, such as metal, weaken the signal between the device and other devices.
  • For models with only internal LoRa antennas, note the LoRa antenna location in the following image. The LoRa signal will be strongest radiating from that side of the device. The LoRa antenna is 31.2 mm long.
  • We recommend conducting a site survey to test the signal strength in different locations before you mount the device.

Mounting the Device

  1. Determine where you want to mount the device.
  2. Mark where you want the screws to go.
  3. Drill holes for the screws and insert anchors.
  4. Place the mounting bracket and secure it with screws.
  5. Attach the device to the bracket and rotate until it locks into place.

Models with Internal LoRa Antenna Only

Models with External LoRa Antenna

Installation

Getting Started

Setting Up Your Credentials (Commissioning) for mPower

The first time the device powers up, it goes into commissioning mode. The system requires you to set up an administrative user. To do this:

Note: MultiTech recommends using Firefox.
  1. Open a browser on your computer and enter the default IP address in the URL field, 192.168.2.1. Most browsers display a warning about HTTP addresses being unsafe because of a self-signed certificate:
    • For Edge, click Advanced and then Continue to 192.168.2.1.
    • For Firefox, click Advanced and then click Accept the Risk and Continue.
    • For Chrome, click Advanced and then Continue to 192.168.2.1 (unsafe).
  2. Enter a username for the administrative user. Click OK. Follow on screen instructions for usernames.
  3. Enter a password and click OK. Follow on screen instructions for a secure password.
  4. Enter the password again to confirm. Click OK.
  5. Log into the device using the new username and password.

The First-Time Setup Wizard appears.

mPower Models First-Time Setup

If your device uses the mPower platform, refer to First-Time Setup in mPower Software Guide (S000727) for details. It is available through your model's page at https://multitech.com/all-products/cellular/cellular-gateways/conduit-ap/.

Connecting with LoRaWAN End Devices

For help connecting your device with LoRaWAN end devices, refer to Application Notes at https://multitech.com/all-products/cellular/cellular-gateways/conduit-ap/.

Dual Carrier Firmware for Cellular Radio

This device uses a cellular radio with dual carrier firmware meaning that it can be used on different carrier networks (not simultaneously). The device can be used on either the Verizon or AT&T/other networks. The device is configured for AT&T/others by default.The device is configured for Verizon by default.

To check that your device is configured for the desired network:
AT#FWSWITCH?
  • If the response is

    #FWSWITCH: 0

    the device is configured for AT&T/other networks.

  • If the response is

    #FWSWITCH: 1

    the device is configured for Verizon.

To switch carrier networks:

  • From AT&T to Verizon: AT#FWSWITCH=1,1
  • From Verizon to AT&T: AT#FWSWITCH=0,1
Note: This AT Command reboots the system.

For the Link status (LS) LED to function, you must issue the command AT#GPIO=1,0,2 any time you use the firmware switch command (AT#FWSWITCH=0 or AT#FWSWITCH=1).

Operation

Reset the Device

A pin, paperclip, or similar thin object that can fit into the reset hole.

The following is the default condition for the RESET button on the device. You can program a change to the behavior of the button if needed.

To reset the device:

  1. Find the hole labeled RESET. The Reset button is recessed into the case.
  2. Use the pin to press and release the Reset button as follows:
    • To reboot, press Reset for less than 3 seconds.
    • To reboot and restore user-defined defaults (if previously set), press Reset for 3 to 29 seconds.
    • To reset to factory settings, press Reset for 30 seconds or longer:
      1. The device restarts in commissioning mode. The system automatically removes all user accounts.
      2. Enter a new username and password to create your new administrative account. See User Accounts in the appropriate software guide for details on username and password requirements.

Disposal

Instructions for Disposal of WEEE by Users in the European Union

The symbol shown below is on the product or on its packaging, which indicates that this product must not be disposed of with other waste. Instead, it is the user's responsibility to dispose of their waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling, contact your local city office, your household waste disposal service or where you purchased the product.

July, 2005

Regulatory Information

FCC Notices

FCC 47 CFR Part 15 Regulation Class B Devices

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

  • Reorient or relocate the receiving antenna.
  • Increase the separation between the equipment and receiver.
  • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
  • Consult the dealer or an experienced radio/TV technician for help.
Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

FCC Interference Notice

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
  1. This device may not cause harmful interference, and
  2. This device must accept any interference received, including interference that may cause undesired operation.

Industry Canada Class B Notice

This Class B digital apparatus meets all requirements of the Canadian Interference‑Causing Equipment Regulations.

This device complies with Industry Canada license‑exempt RSS standard(s). The operation is permitted for the following two conditions:

  1. The device may not cause interference, and
  2. This device must accept any interference, including interference that may cause undesired operation of the device.

Cet appareil numérique de la classe B respecte toutes les exigences du Reglement Canadien sur le matériel brouilleur.

Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes:

  1. L'appareil ne doit pas produire de brouillage, et
  2. L'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.

EU EMC, Safety, and Radio Equipment Directive (RED) Compliance

The CE mark is affixed to this product to confirm compliance with the following European Community Directives:

  • Council Directive 2011/65/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment; and
  • Council Directive 2014/53/EU on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity.

MultiTech declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. The declaration of conformity may be downloaded at https://multitech.com/product-support/.

Environmental Notices

EU WEEE Directive

Note: This statement may be used in documentation for your final product applications.

The Waste from Electrical and Electronic Equipment (WEEE) Directive places an obligation on EU‑based manufacturers, distributors, retailers, and importers to take back electronics products at the end of their useful life. A sister directive, ROHS (Restriction of Hazardous Substances) complements the WEEE Directive by banning the presence of specific hazardous substances in the products at the design phase. The WEEE Directive covers all MultiTech products imported into the EU as of August 13, 2005. EU‑based manufacturers, distributors, retailers and importers are obliged to finance the costs of recovery from municipal collection points, reuse, and recycling of specified percentages per the WEEE requirements.

EU RoHS 3 Directive

MultiTech confirms that all products comply with the chemical concentration limitations set forth in the Restriction of Hazardous Substances in Electrical and Electronic Equipment (RoHS 3) regulations for CE and UKCA, following the standard EN IEC 63000:2018.

For the current Certificate of Compliance for Hazardous Substances and additional regulatory documents, go to https://multitech.com/approvals-and-certifications/.

EU REACH‑SVHC Statement

Multi‑Tech Systems, Inc. confirms that none of its products or packaging contain any of the Substances of Very High Concern (SVHC) on the REACH Candidate List, in a concentration above the 0.1% by weight allowable limit.

For the current REACH‑SVHC statement and additional regulatory documents, go to https://multitech.com/approvals-and-certifications/.

Accessories

To find information on accessories for your product, go to https://multitech.com/all-products/accessories/.

Related Documents

Additional documentation is available at www.multitech.com. Search for the document part number in the website search.

Document Description Part Number
mPower Software Guide For mPower models only. Includes steps for configuring and using devices using the mPower platform. S000727
Conduit AP MTCAP, MTCAP2, and MTCAP3 Quick-start guide Steps for getting started with hardware. Ships with the device is available online. Go to https://multitech.com/wp-content/uploads/82104753L_MTCAP-MTCAP2-MTCAP3_Quick-Start.pdf. N/A
Telit LE910 AT Commands Reference Guide For LNA devices, lists AT Commands and parameters used to communicate with your device. 80407ST10116A

Developer Documentation

Our developer site includes information for the mLinux platform, advanced mPower information, and LoRa information.

Power over Ethernet (PoE)

Some MTCAP models support PoE. For information on using and troubleshooting PoE, refer to the PoE Application Note: https://www.multitech.com/documents/publications/application-notes/S000678.pdf.
