About the MultiConnect Conduit IP67 200 Series Base Station
|

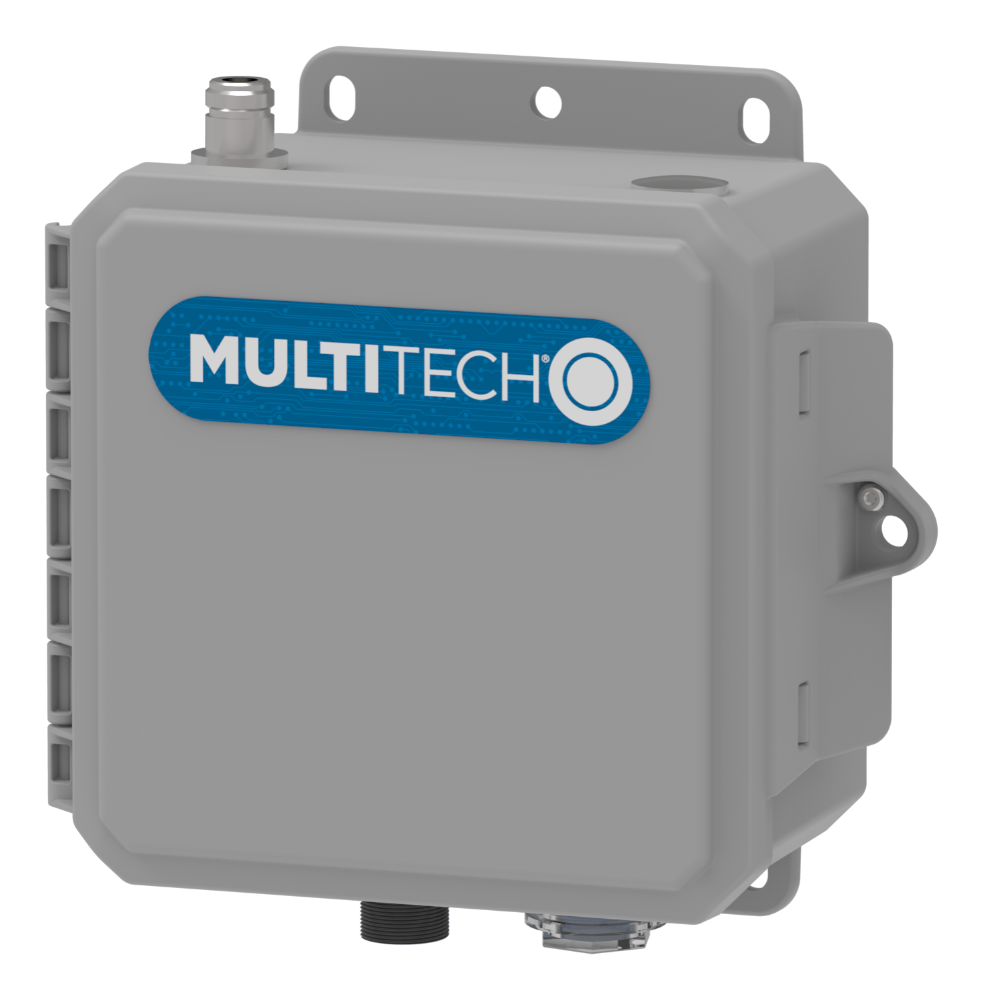

The MultiTech Conduit® IP67 200 Series Base Station (MTCDTIP2) is a ruggedized IP67 Base Station connecting thousands of IoT assets to the cloud using the LoRaWAN® protocol. This highly scalable and certified IP67 solution is capable of resisting the harshest environmental factors including moisture, dust, wind, rain, snow and extreme heat, supporting LoRaWAN applications in virtually any environment. |
 |
Conduit® IP67 Series 200 Base Station Ordering Options
| Ordering Part Number | Description | Region |
|---|---|---|
| MTCDTIP2-EN-B11EKP-D1M | Ethernet only mPower Programmable Base Station, 8-channel, 868 MHz with internal LoRa antenna. |
European Union United Kingdom United States |
| MTCDTIP2-EN-B11EKP-D1L | Ethernet only mLinux Programmable Base Station, 8-channel, 868 MHz with internal LoRa antenna. | |
| MTCDTIP2-EN-B11EKP-L1M | Ethernet only mPower Programmable Base Station, 8-channel, 868 MHz with external LoRa antenna. | |
| MTCDTIP2-EN-B11EKP-L1L | Ethernet only mLinux Programmable Base Station, 8-channel, 868 MHz with external LoRa antenna. | |
| MTCDTIP2-EN-B11UKP-L1M | Ethernet only mPower Programmable Base Station, 8-channel, 915 MHz with external LoRa antenna. | |
| MTCDTIP2-EN-B11UKP-L1L | Ethernet only mLinux Programmable Base Station, 8-channel, 915 MHz with external LoRa antenna. | |
| MTCDTIP2-L4E1-B11EKP-D1M | LTE Cat 4 mPower Programmable Base Station, 8-channel, 868 MHz with internal LoRa antenna, and internal cellular antenna. |
European Union United Kingdom |
| MTCDTIP2-L4E1-B11EKP-D1L | LTE Cat 4 mLinux Programmable Base Station, 8-channel, 868 MHz with internal LoRa antenna and internal cellular antenna. | |
| MTCDTIP2-L4E1-B11EKP-L1M | LTE Cat 4 mPower Programmable Base Station, 8-channel, 868 MHz with external LoRa antenna and internal cellular antenna. | |
| MTCDTIP2-L4E1-B11EKP-L1L | LTE Cat 4 mLinux Programmable Base Station, 8-channel, 868 MHz with external LoRa antenna and internal cellular antenna. | |
| MTCDTIP2-LNA3-B11UKP-L1M | LTE Cat 1 mPower Programmable Base Station, 8-channel, 915 MHz with external LoRa antenna and internal cellular antenna. (AT&T/Verizon) |
Canada United States |
| MTCDTIP2-LNA3-B11UKP-L1L | LTE Cat 1 mLinux Programmable Base Station, 8-channel, 915 MHz with external LoRa antenna and internal cellular antenna. (AT&T/Verizon) |
Specifications
LNA3 Base Station Specifications
| Category | Description |
|---|---|
| General | |
| Standards | LoRaWAN 1.0.2 specifications |
| LTE 3GPP Release 9 (-LNA3 models only) | |
| HSPA+ (-LNA3 models only) | |
| RAM | 256MB |
| Flash | 256MB |
| Radio Frequency | |
| ISM Band | NA915, AU915, and AS23 |
| 4G/LTE | -LNA3 models only 1900 (B2) / AWS 1700 (B4) / 850 (B5) / 700 (B12/13) |
| 3G | -LNA3 models only 1900 (B2) / 850 (B5) |
| Physical Description | |
| Weight | 2.09 lbs (0.95 kg) |
| Dimensions | Refer to Mechanical Drawings for Dimensions. |
| Chassis Type | IP67-Rated composite |
| Environment | |
| Operating Temperature1 | -40° C to +70° C |
| Storage Temperature | -40° C to +85° C |
| Humidity | 20%-90% RH, non-condensing |
| Power Requirements | |
| PoE Input Power | 42.5 to 57 VDC with Ethernet speed 10/100 |
| PoE Standard: | IEEE 802.3at |
| Minimum Watts | 15W (Minimum watts required to run the device) |
| Certifications and Compliance | |
| Outdoor Certification/IP Outdoor Protected Class | UL/CSA 60950-22 & IP67 |
| EMC and Radio Compliance | FCC Part 15B (Class A) |
| FCC Part 15C | |
| FCC Part 22 24, 27 | |
| ICES-003 Class A | |
| ISED. RSS-247 Issue 2 (Canada) | |
| Safety Compliance | UL 62368-1 2nd Ed |
| cUL 62368-1 2nd Ed | |
| UL 60950-1 | |
| cUL 60950-1 | |
1Product has been tested to +70° C excluding PoE supply. PoE supply temperature rating and operation depend on the environment where the PoE supply is located. The selected PoE supply must be designed and certified to limit power source (LPS) and meet MTCDTIP2 power ratings.
L4E1 Base Station Specifications
| Category | Description |
|---|---|
| General | |
| Standards | LoRaWAN 1.0.2 specifications |
| LTE FDD Cat 4, 3GPP release compliant (-L4E1 models only) | |
| HSPA+ with GPRS fallback (-L4E1 models only) | |
| RAM | 256MB |
| Flash | 256MB |
| Radio Frequency | |
| ISM Band | 868 MHz ISM band for Europe |
| 4G/LTE | 4G: 1800 (B3), 2600 (B7), 800 (B20), 2100 (B1), 900 (B8), 700 (B28A) |
| 3G | 3G: 2000 (B1), 1800 (B3), 900 (B8) |
| 2G | 2G: 1800 (B3), 900 (B8) |
| Physical Description | |
| Weight | 0.95 kg |
| Dimensions | Refer to Mechanical Drawings for Dimensions. |
| Chassis Type | IP67-Rated composite |
| Environment | |
| Operating Temperature1 | -40° C to +70° C |
| Storage Temperature | -40° C to +85° C |
| Humidity | 20%-90% RH, non-condensing |
| Altitude During Operation | 5000 meters maximum |
| PoE and Power Requirements | |
| PoE Input Power | 42.5 to 57 VDC |
| PoE Standard: | IEEE 802.3at |
| Ethernet Speed | 10/100 Mbps |
| Minimum Watts | 15W (Minimum watts required to run the device) |
| Certifications and Compliance | |
| Outdoor Certification/IP Outdoor Protected Class | IP67 & IEC 60950-222 |
| EMC and Radio Compliance | EN 55032 Class A |
| EN 301 489-3 V2.1.1 for RED | |
| EN 301 489-1 V2.2.0 for RED | |
| EN 301 489-52 V1.1.0 Harmonized standard for cellular RED | |
| EN 300 220-1 V3.1.1 | |
| EN 300 220-2 V3.1.1 | |
| EN 300 328 V2.1.1 | |
| EN 301 489-19 | |
| EN 301 511 V9.0.2 | |
| EN 301 893 V2.1.1 | |
| EN 301 908-1 V11.1.1 | |
| EN 301 902-2 V11.1.1 | |
| EN 301 908-13 V11.1.1 | |
| EN 62311-2008 | |
| Safety Compliance | IEC 62368-1 2nd Ed |
| IEC 62368-1 | |
1Product has been tested to +70° C excluding PoE supply. PoE supply temperature rating and operation depend on the environment where the PoE supply is located. The selected PoE supply must be designed and certified to limit power source (LPS) and meet MTCDTIP2 power ratings.
