About the Conduit® AP Series Access Point
|

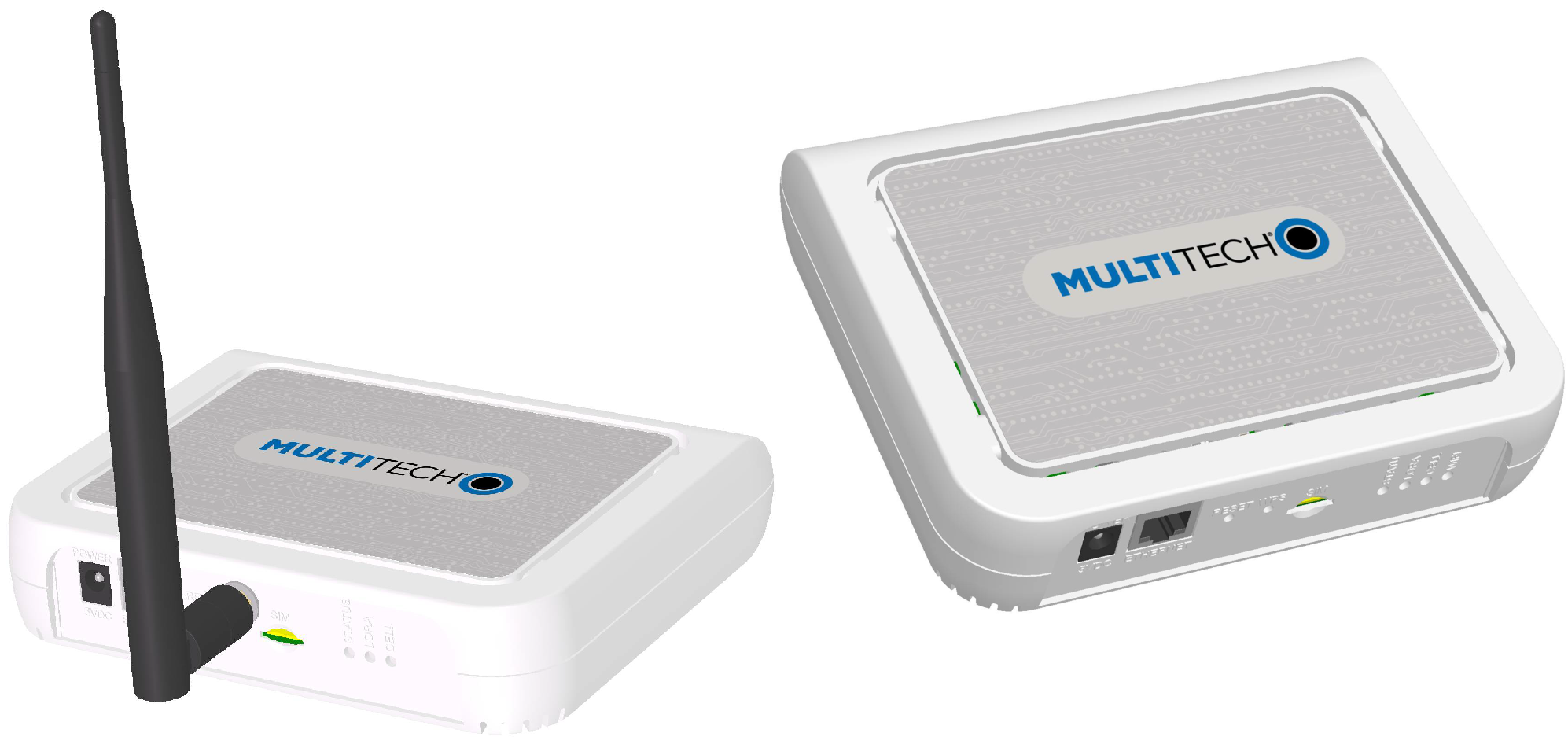

Conduit AP (MTCAP) securely connects thousands of LoRaWAN® wireless IoT sensors to the cloud using the LoRaWAN® protocol. The Conduit AP Access Point packet forwarding gateway offers Ethernet and Cellular Wide Area Networks seamless connectivity options to connect to Cloud based applications in centrally located data centers. |
 |
MTCAP Ordering Options
| Ordering Part Number | Description | Cellular Region |
|---|---|---|
| MTCAP-LNA3-915-041L | LTE Cat 1 mLinux Programmable Access Point with external LoRa antenna and US Accessory Kit (AT&T/Verizon) |
Canada United States |
| MTCAP-915-041L | mLinux Programmable Access Point with external LoRa antenna and US Accessory Kit | |
| MTCAP-LNA3-915-041A | LTE Cat 1 AEP Programmable Access Point with external LoRa antenna and US Accessory Kit (AT&T/Verizon) | |
| MTCAP-915-041A | AEP Programmable Access Point with external LoRa antenna and US Accessory Kit | |
| MTCAP-L4E1-868-041L | LTE Cat 1 mLinux Programmable Access Point with external LoRa antenna and US Accessory Kit (AT&T/Verizon) |
European Union United Kingdom |
| MTCAP-868-041L | mLinux Programmable Access Point with external LoRa antenna and US Accessory Kit | |
| MTCAP-L4E1-868-041A | LTE Cat 1 AEP Programmable Access Point with external LoRa antenna and US Accessory Kit (AT&T/Verizon) | |
| MTCAP-868-041A | AEP Programmable Access Point with external LoRa antenna and US Accessory Kit | |
| MTCAP-LAP3-915-001A | LTE Cat 1 mPower Programmable Access Point with internal LoRa antenna |
Australia |
| MTCAP-LAP3-915-001L | LTE Cat 1 mLinux Programmable Access Point with internal LoRa antenna |
Specifications
LNA3 Specifications
| Category | Description |
|---|---|
| General | |
| Standards | LoRaWAN 1.0.2 specifications |
| LTE 3GPP Release 9 | |
| HSPA+ | |
| RAM | 256MB |
| Flash | 256MB |
| Radio Frequency | |
| ISM Band | 915 MHz ISM band for US and Canada |
| 4G/LTE | 1900 (B2) / AWS 1700 (B4) / 850 (B5) / 700 (B12/13) |
| 3G | 1900 (B2) / 850 (B5) |
| Physical Description | |
| Weight | 1.36 kg |
| Dimensions | Refer to Mechanical Drawings for Dimensions. |
| Chassis Type | PC-ABS |
| Environment | |
| Operating Temperature1 | -0° C to +70° C |
| Storage Temperature | -40° C to +85° C |
| Humidity | 20%-90% RH, non-condensing |
| Power Requirements | |
| Operating Voltage | 5Vdc, 1.4A |
| Certifications and Compliance | |
| EMC and Radio Compliance | FCC Part 15 Class B |
| FCC Part 15.247 (LoRa) | |
| FCC 22H, 24E, 27 | |
| Safety Compliance | UL 62368-1 2nd Ed |
| UL / IEC 62368-1 | |
| Approvals | AT&T, Verizon, T-Mobile, PTCRB |
1 UL listed at 40° C, limited by AC power supply. Product has been tested to +70° C excluding power supply.
L4E1 Specifications
| Category | Description |
|---|---|
| General | |
| Standards | LoRaWAN 1.0.2 specifications |
| LTE FDD Cat 4, 3GPP release compliant (-L4E1 models only) | |
| HSPA+ with GPRS fallback (-L4E1 models only) | |
| RAM | 256MB |
| Flash | 256MB |
| Radio Frequency | |
| ISM Band | 868 MHz ISM band for Europe |
| 4G/LTE | 4G: B1, B3, B7, B8, B20, B28A (-L4E1 models only) |
| 3G | 3G: B1, B3, B8 (-L4E1 models only) |
| 2G | 2G: B3, B8 (-L4E1 models only) |
| Physical Description | |
| Weight | 0.41 kg |
| Dimensions | Refer to Mechanical Drawings for Dimensions. |
| Chassis Type | PC-ABS |
| Environment | |
| Operating Temperature1 | -0° C to +70° C |
| Storage Temperature | -40° C to +85° C |
| Humidity | 20%-90% RH, non-condensing |
| Power Requirements | |
| Operating Voltage | 5Vdc, 1.4A |
| LoRa ERP2 | 13.3 dBm ERP for low power channels, maximum 14 dB. |
| 25.8 dB for high power channels, maximum 27 dB. | |
| Certifications and Compliance | |
| EMC and Radio Compliance | CE Mark, RED (EU) |
| Safety Compliance | UL/IEC 62368-1 |
1 UL listed at 40° C, limited by AC power supply. Product has been tested to +70° C excluding power supply.
2Determined using the internal LoRa antenna of 0.85 dB gain. If using an external LoRa antenna, adjust levels to ensure maximum values are not exceeded.
LAP3 Specifications
| Category | Description |
|---|---|
| General | |
| Standards | LoRaWAN 1.0.2 specifications |
| LTE FDD Cat.1, 3GPP release 10 compliant | |
| 3G fallback | |
| RAM | 256MB |
| Flash | 256MB |
| Radio Frequency | |
| ISM Band | 915 MHz ISM band for Australia |
| 4G/LTE | 2100 (B1) / 1800 (B3) / 850 (B5) / 800 (B8) / 700 (B28) |
| 3G | 2100 (B1) / 850 (B5) / 800 (B8) |
| Physical Description | |
| Weight | 1.36 kg |
| Dimensions | Refer to Mechanical Drawings for Dimensions. |
| Chassis Type | PC-ABS |
| Environment | |
| Operating Temperature1 | -0° C to +70° C |
| Storage Temperature | -40° C to +85° C |
| Humidity | 20%-90% RH, non-condensing |
| Power Requirements | |
| Operating Voltage | 5Vdc, 1.4A |
| Certifications and Compliance | |
| EMC and Radio Compliance | CISPR 32 |
| AS/NZS 4268:2017 | |
| Safety Compliance | RCM – Australia |
| UL/CSA 60950-1 | |
| IEC 60950-1 2nd Ed Am2 | |
| UL/CSA 62368-1 | |
| IEC 62368-1 | |
1 UL listed at 40° C, limited by AC power supply. Product has been tested to +70° C excluding power supply.
mPower™ Edge Intelligence
mPower™ Edge Intelligence is an embedded software offering to deliver programmability, network flexibility, enhanced security, and manageability for scalable Industrial Internet of Things (IIoT) solutions. mPower represents the unification and evolution of well-established MultiTech smart router and gateway firmware platforms.
mPower Edge Intelligence simplifies integration with a variety of popular upstream IoT platforms to streamline edge-to-cloud data management and analytics, while also providing the programmability and processing capability to execute critical tasks at the edge of the network to reduce latency; control network and cloud services costs, and ensure core functionality – even in instances when network connectivity may not be available. In response to evolving customer security requirements, mPower Edge Intelligence incorporates a host of new security features including signed firmware validation, secure boot, new Cloud management, programmability of custom apps, DI/DO, and more.
Accessories
To find information on accessories for your product, go to https://multitech.com/all-products/accessories/.
