About the Conduit® AP 300 Series Access Point
|

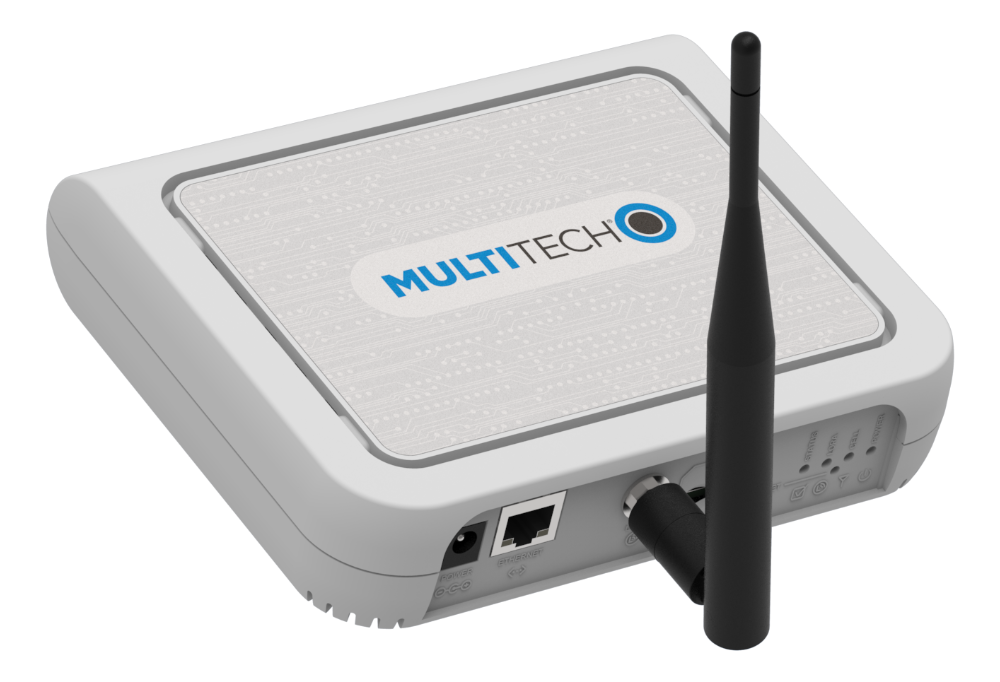

Conduit AP 300 Series (MTCAP3) securely connects thousands of LoRaWAN® wireless IoT sensors to the cloud using the LoRaWAN® protocol. The Conduit AP Access Point packet forwarding gateway offers Ethernet and Cellular Wide Area Networks seamless connectivity options to connect to Cloud based applications in centrally located data centers. |
 |
Intended Use
The Conduit AP is designed for indoor use and industrial applications, such as smart buildings, retail spaces, agricultural environments, and other deployments where reliability and secure long-range data communication is essential.
MTCAP3 Ordering Options
| Ordering Part Number | Description | Cellular Region |
|---|---|---|
| MTCAP3-EN-A23UEA-LWM.R1 | Ethernet-only mPower programmable access point with LoRa 915 MHz and external LoRa antenna |
Australia Canada New Zealand United States |
| MTCAP3-EN-A23UEA-DWM.R1 | Ethernet-only mPower programmable access point with LoRa 915 MHz | |
| MTCAP3-LNA7D-A23UEA-LUM.R1 | LTE Cat 4 mPower programmable access point with LoRa 915 MHz and external LoRa antenna |
Canada United States |
| MTCAP3-LNA7D-A23UEA-DUM.R1 | LTE Cat 4 mPower programmable access point with LoRa 915 MHz | |
| MTCAP3- L4G2D-A23UEA-LUM-BAC | LTE Cat 4 mPower/BACnet programmable access point with LoRa 868 MHz and external LoRa antenna | |
| MTCAP3-L4G2D-A23UEA-DUM | LTE Cat 4 mPower programmable access point with LoRa 915 MHz |
Australia Canada New Zealand European Union United Kingdom United States |
| MTCAP3-L4G2D-A23UEA-LUM | LTE Cat 4 mPower programmable access point with LoRa 915 MHz and external LoRa antenna | |
| MTCAP3-L4G2D-A23EEA-DEM | LTE Cat 4 mPower programmable access point with LoRa 915 MHz | |
| MTCAP3-L4G2D-A23EEA-LEM | LTE Cat 4 mPower programmable access point with LoRa 915 MHz and external LoRa antenna | |
| MTCAP3-L4G2D-A23EEA-LEM-BAC | LTE Cat 4 mPower/BACnet programmable access point with LoRa 868 MHz and external LoRa antenna |
European Union United Kingdom |
| MTCAP3-LEU7-A23EEA-LEM.R1 | LTE Cat 4 mPower programmable access point with LoRa 868 MHz and external LoRa antenna | |
| MTCAP3-LEU7-A23EEA-DEM.R1 | LTE Cat 4 mPower programmable access point with LoRa 868 MHz | |
| MTCAP3-EN-A23EEA-LEM.R1 | Ethernet-only mPower programmable access point with LoRa 868 MHz and external LoRa antenna | |
| MTCAP3-EN-A23EEA-DEM.R1 | Ethernet-only mPower programmable access point with LoRa 868 MHz |
Specifications
Specifications for 915 MHz Models
| Category | Description |
|---|---|
| General | |
| Standards | LoRaWAN 1.0.4 specifications |
| LTE FDD Cat 4, 3GPP release 11 compliant | |
| WCDMA/GSM fallback | |
| LoRa radio frequency | 915 MHz ISM band |
| Cell radio frequency bands (MHz) for L4G2D | 4G LTE FDD (Europe): B3 (1800), B7 (2600), B8 (900), B20 (800) |
| 2G (Europe fallback): B2 (1900), B3 (1800), B5 (850), B8 (900) | |
| 4G LTE FDD (AT&T): B2 (1900), B4 (AWS1700), B12 (700), B14 (700) | |
| 4G LTE FDD (Verizon): B2 (1900), B4 (AWS1700), B13 (700) | |
| 4G LTE FDD (Anterix): B8‑US (900) | |
| 4G LTE FDD (APAC): B1 (2100), B9 (1800), B18 (800), B19 (850), B26 (850), B28 (700) | |
| 3G: B1 (2100), B2 (1900), B4 (AWS1700), B5 (850), B6, B8 (900), B19 (850) | |
| 2G: B2 (1900), B3 (1800), B5 (850), B8 (900) | |
| 4G LTE FDD bands: B25 (1900) | |
| Cell radio frequency bands (MHz) for LNA7D | LTE FDD: B2 (1900), B4 (AWS1700), B5 (850), B12 (700), B13 (700), B25 (1900), B26 (850) |
| WCDMA: B2 (1900), B4 (AWS1700), B5 (850) | |
| Physical Description | |
| Dimensions | 165 (6.5) × 135 (5.3) × 36 (1.4) mm (in) |
| Weight | 0.11 kg (0.24 lb) without antenna |
| Chassis | PC-ABS |
| Power Requirements | |
| Operating voltage | 5 VDC @ 2.5A |
| AC power requirement | Ethernet active, cellular connection established, LoRa RX: 2W |
| Ethernet active, cellular connection at maximum transmit power, LoRa RX+TX: 5W | |
| LoRa tx power | Australia and North America: 29.1 dBm maximum EIRP (includes external LoRa antenna) |
| Japan: 14 dBm maximum EIRP (includes external LoRa antenna) | |
| New Zealand: 29.9 dBm maximum EIRP (includes external LoRa antenna) | |
| Environment | |
| Operating temperature1 | 0 °C to 70 °C (32 °F to 158 °F) |
| Storage temperature | -40 °C to 85 °C (−40 °F to 185 °F) |
| Humidity | 20%-90%, RH non-condensing |
| Certifications | |
| EMC and radio compliance | FCC Part 15 Class B |
| FCC Part 15.247 (LoRa) | |
| FCC 22H, 24E, 27, 90 | |
| RSS130,RSS133, RSS139 | |
| RSS210 (LoRa) | |
| ASNZ 4268 | |
| Safety compliance | UL 62368-1 2nd Edition |
| UL / IEC 62368-1 | |
Specifications for 868 MHz Models
| Category | Description |
|---|---|
| General | |
| Standards | LoRaWAN 1.0.4 specifications |
| LTE FDD Cat 4, 3GPP release 11 compliant (LEU7 models only) | |
| WCDMA/GSM fallback | |
| LoRa radio frequency | 868 MHz ISM |
| Cell radio frequency bands (MHz) for L4G2D | 4G LTE FDD (Europe): B3 (1800), B7 (2600), B8 (900), B20 (800) |
| 2G (Europe fallback): B2 (1900), B3 (1800), B5 (850), B8 (900) | |
| 4G LTE FDD (AT&T): B2 (1900), B4 (AWS1700), B12 (700), B14 (700) | |
| 4G LTE FDD (Verizon): B2 (1900), B4 (AWS1700), B13 (700) | |
| 4G LTE FDD (Anterix): B8‑US (900) | |
| 4G LTE FDD (APAC): B1 (2100), B9 (1800), B18 (800), B19 (850), B26 (850), B28 (700) | |
| 3G: B1 (2100), B2 (1900), B4 (AWS1700), B5 (850), B6, B8 (900), B19 (850) | |
| 2G: B2 (1900), B3 (1800), B5 (850), B8 (900) | |
| 4G LTE FDD bands: B25 (1900) | |
| Cell radio frequency bands (MHz) for LEU7 | LTE FDD: B1 (2100), B3 (1800), B7 (2600), B8 (900), B20 (800), B28A (700) |
| WCDMA: B1 (2100), B8 (900) | |
| GSM: B3 (1800), B8 (900) | |
| Physical Description | |
| Dimensions | 165 (6.5) × 135 (5.3) × 36 (1.4) mm (in) |
| Weight | 0.11 kg (0.24 lb) without antenna |
| Chassis | PC-ABS |
| Power Requirements | |
| Operating voltage | 5 VDC @ 2.5A |
| AC power requirement | Ethernet active, cellular connection established, LoRa RX: 2W |
| Ethernet active, cellular connection at maximum transmit power, LoRa RX+TX: 5W | |
| LoRa tx power | Internal antenna models: 12.3–24.8 dBm maximum ERP; maximum ERP is 12.3 dBm for whole band, except 24.8 dBm at 869.525 MHz |
| External antenna models: 13.0–25.5 dBm maximum ERP; maximum ERP is 13.0 dBm for whole band, except 25.5 dBm at 869.525 MHz | |
| Environment | |
| Operating temperature3 | 0 °C to 70 °C (32 °F to 158 °F) |
| Storage temperature | -40 °C to 85 °C (−40 °F to 185 °F) |
| Humidity | 20%-90% RH, non-condensing |
| Certifications | |
| EMC and radio compliance | CE Mark, RED (EU) |
| EN 300 220-1 / EN 301 489-1 / EN 301 908-1 (see Declaration of Conformity for details) | |
| Safety compliance | UL/IEC 62368-1 |
mPower™ Edge Intelligence
mPower™ Edge Intelligence is an embedded software offering to deliver programmability, network flexibility, enhanced security, and manageability for scalable Industrial Internet of Things (IIoT) solutions. mPower represents the unification and evolution of well-established MultiTech smart router and gateway firmware platforms.
mPower Edge Intelligence simplifies integration with a variety of popular upstream IoT platforms to streamline edge-to-cloud data management and analytics, while also providing the programmability and processing capability to execute critical tasks at the edge of the network to reduce latency; control network and cloud services costs, and ensure core functionality – even in instances when network connectivity may not be available. In response to evolving customer security requirements, mPower Edge Intelligence incorporates a host of new security features including signed firmware validation, secure boot, new Cloud management, programmability of custom apps, DI/DO, and more.
Accessories
To find information on accessories for your product, go to https://multitech.com/all-products/accessories/.
