About the MultiTech CT300
|

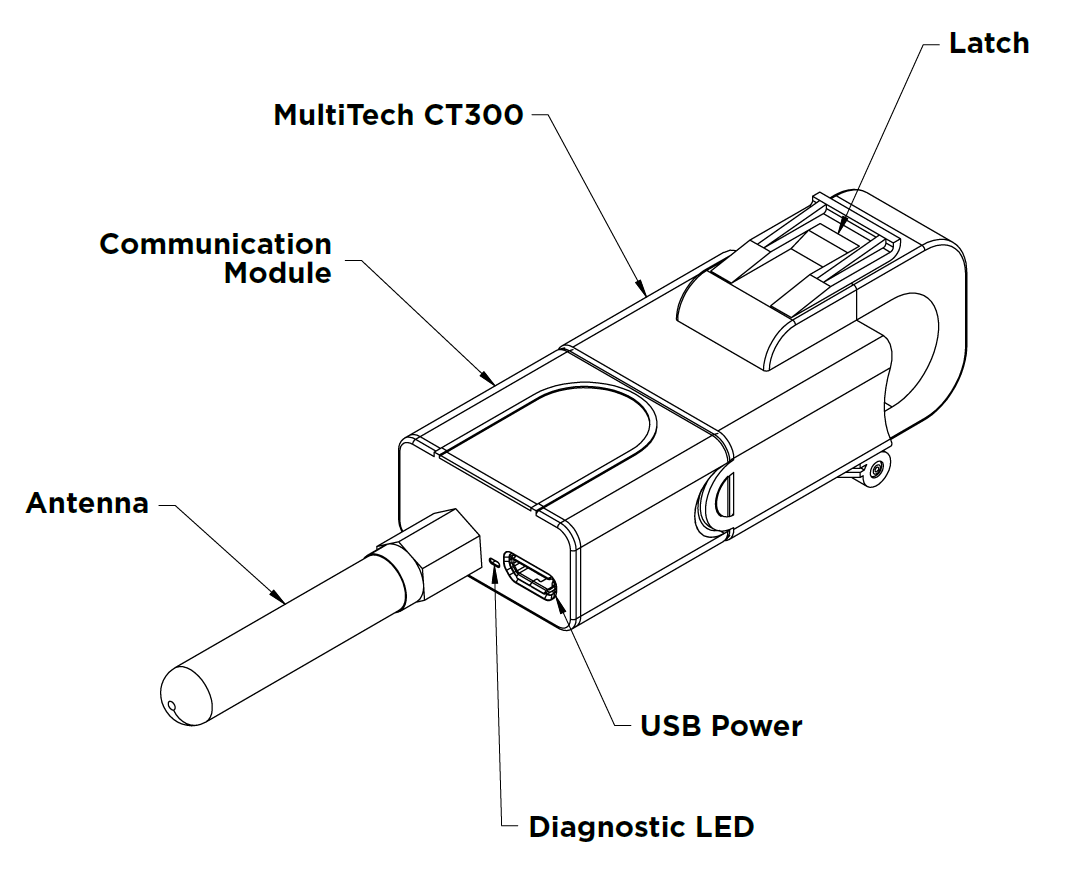

MultiTech CT300 (MTCT300) is a wireless and self-powered electrical current monitoring device. It is capable of reporting average, peak, and minimum RMS Amperes and tracking accumulated Amp-Hours. The device parasitically harvests energy from the monitored conductor, negating the need for routine maintenance to replace or charge batteries. MTCT300 uses sub-gigahertz LoRaWAN for long range wireless communications. This IoT interface can be deployed as a private network, or used with an available public one. The use of short data messages increases reliability of transmission in suboptimal environments such as metal electrical panels. |
 |
 |

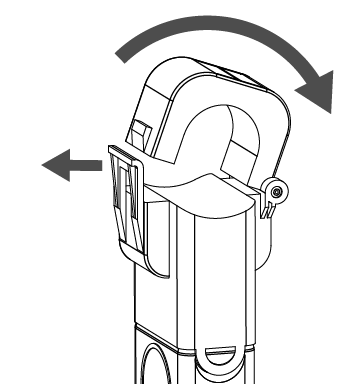

The MTCT300 uses a split-core current transformer to allow easy installation on existing wiring.  |
Ordering Options
| Ordering Part Number | Description | Region |
|---|---|---|
| MTCT300-NA-1 | Industrial wireless 300A current transformer for energy monitoring – 1 Pk |
Canada United States |
| MTCT300-NA-10 | Industrial wireless 300A current transformer for energy monitoring – 10 Pk | |
| MTCT300-EU-1 | Industrial wireless 300A current transformer for energy monitoring – 1 Pk |
European Union United Kingdom |
| MTCT300-EU-10 | Industrial wireless 300A current transformer for energy monitoring – 10 Pk |
Specifications
| Category | Description |
|---|---|
| Operational Characteristics | |
| Voltage | 85 to 480 VAC |
| Power Consumption | 0.7 W1 |
| Frequency | 47 to 63 Hz |
| Temperature Range | -25 to 70 °C |
| Humidity | Typical: < 60% RH |
| Max: 80% RH | |
| Pollution Degree | 2 |
| Operational Altitude | 2000m |
| Mechanical Characteristics | |
| Weight | 2.3 oz (65 g) |
| IP Degree of Protection | IP51 (indoors) |
| Window Dimensions (L×W) | 0.6" × 0.6" (16 × 16 mm) |
| Exterior Dimensions (L×W×D) | 3.2" × 1.25"× 0.6" (82 × 32 × 16mm) |
| Mounting | Wire-Hang |
| Communications | |
| Wireless Interface | 800-900 MHz LoRaWAN |
| LoRaWAN Specification | 1.0.2 RevB |
| Frequency Bands | US915/EU868 |
| LoRaWAN Device Class | Class A |
| Transmit Power | +20 dBm |
| Receive Sensitivity | -137 dBm |
| Certifications | |
| UL/CSA | UL 508, CSA C22.2 #14-18 |
| FCC ID | 2APCG-VUHDC1 |
| RoHS | Compliant |
| Warranty | |
| Warranty | One year from date of purchase. Note: Repair
is by the manufacturer only. Opening MTCT300 voids the
warranty.
|
